Exploring Gantry Crane Variants: Types and Applications

Gantry cranes serve as versatile lifting solutions across industries, characterized by an overhead horizontal beam (bridge) supported by vertical legs. These systems enhance material handling efficiency through adaptable configurations. This guide examines various gantry crane types, analyzing their capabilities, limitations, and optimal operational environments.

1.Single-Girder Gantry Cranes

Featuring a singular horizontal beam supported by legs, these cranes excel in cost-effective light-to-medium duty operations.

Key Advantages
• Lower initial investment vs. double-girder counterparts
• Space-efficient profile requiring minimal installation footprint
• Modular assembly for simplified transportation and setup
• Adaptable for multi-process material handling workflows

Limitations
• Restricted payload capacity (typically <20 tons)
• Reduced lateral load resistance in high-wind conditions
• Unsuitable for heavy industrial applications

Ideal Deployment Scenarios
• Warehouse systems with moderate lifting demands
• Manufacturing plants requiring flexible load positioning
• Compact construction sites with spatial constraints

2. Double-Girder Gantry Cranes

Incorporating parallel horizontal beams, these heavy-duty systems handle substantial loads with enhanced stability.

Operational Superiority
• Enhanced payload capacity (up to 500+ tons)
• Optimized structural integrity for long-span operations
• Weather-resistant designs for outdoor installations
• Customizable lifting attachments (magnets, grabs, etc.)

Considerations
• Higher capital expenditure and foundation requirements
• Extended commissioning timelines
• Demands specialized engineering support

Primary Applications
• Shipyard component assembly/repair
• Steel mill structural handling
• Mega-construction project logistics

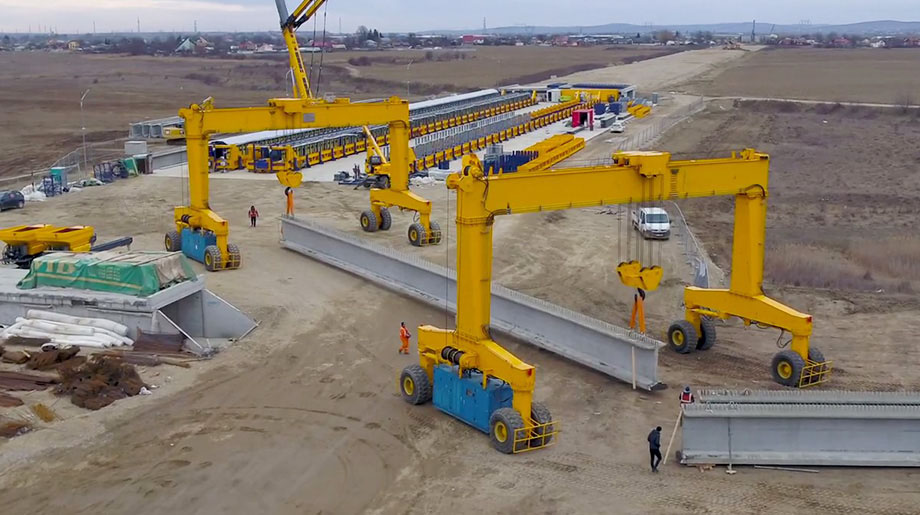

3. Rubber-Tired Gantry (RTG) Cranes

Mobile container handlers utilizing pneumatic tires for inter-stack navigation.

Strategic Benefits
• Dynamic container yard layout optimization
• Rapid stack reorganization capabilities (4-6 high)
• Reduced infrastructure dependency vs. rail systems

Operational Constraints
• Surface flatness requirements (±3° tolerance)
• Elevated tire maintenance costs
• Fuel consumption management challenges

Deployment Zones
• High-throughput container terminals
• Portside transshipment hubs
• Intermodal freight facilities

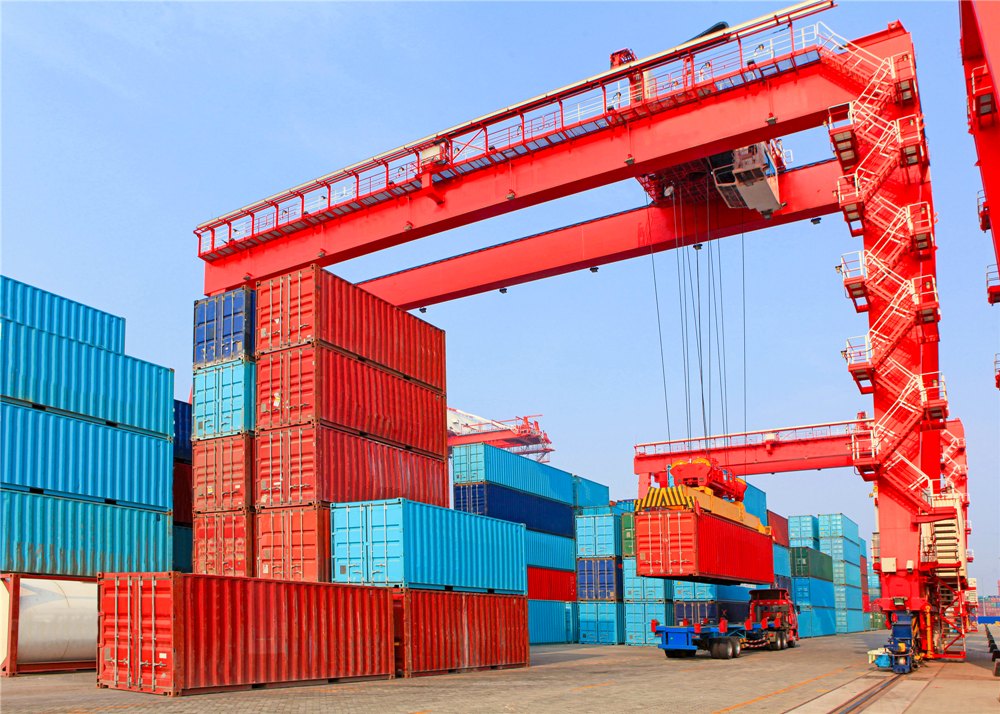

4. Rail-Mounted Gantry (RMG) Cranes

Fixed-rail systems specializing in precision container management.

Technical Advantages
• Vertical stacking optimization (7-8 container tiers)
• Millimeter-level positioning accuracy
• Reduced long-term maintenance costs

Implementation Challenges
• Significant rail network infrastructure investment
• Restricted operational flexibility
• Specialized technician training requirements

Optimal Utilization
• Dedicated container rail yards
• High-density port storage zones
• Cross-docking logistics complexes

5. Modular Portable Gantry Systems

Temporary lifting solutions for flexible operational needs.

Mobility Features
• Rapid deployment (<2 hours setup time)
• Adjustable height/span configurations
• Collapsible design for transport efficiency

Performance Parameters
• Max capacity: 5-10 tons (standard models)
• Surface levelness criticality: ±1° gradient

Typical Use Cases
• Field maintenance operations
• Exhibition hall equipment handling
• Emergency repair scenarios

Selection Criteria Overview

Modern industrial operations require precise crane selection based on load profiles, spatial parameters, and workflow dynamics. By matching system capabilities to operational demands, organizations achieve optimized safety standards, throughput efficiency, and lifecycle cost management.
