Industry Applications

Construction and Infrastructure Development

2024-09-23

Construction and Infrastructure Cranes are essential mechanical equipment used in construction and infrastructure development to lift and move heavy materials such as beams, concrete, and steel. Overhead cranes and gantry cranes are widely used for material handling on construction sites, especially for precast beams and other large components. Beam launcher cranes and precast beams lifting gantry cranes are specifically designed for the precise placement and transportation of these heavy items.

Compared with traditional lifting equipment, these cranes offer greater flexibility, ease of operation, stability, and efficiency. They allow for high stacking, optimized space utilization, and safe handling of heavy loads. Precast beam transport vehicles, electric hoists and winches, jib cranes, and transfer carts enhance the overall workflow by enabling smooth, cross-site operations, making them especially suitable for large infrastructure projects, bridge construction, and other complex construction sites.

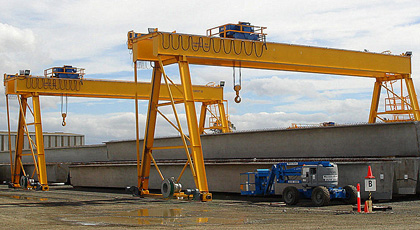

  1. 1. Overhead Cranes & Gantry Cranes: Lifting and placing heavy construction materials, such as steel beams, concrete segments, and other structural components in the construction of buildings, bridges, and infrastructure.

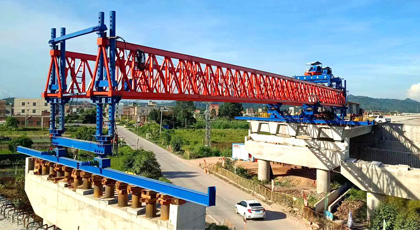

  2. 2. Beam Launcher Cranes: Specifically used for positioning and installing precast concrete beams during bridge construction.
  3. 3. Precast Beams Lifting Gantry Cranes: Designed to lift and position large precast beams during the construction of bridges and large structures.
  4. 4. Precast Beams Transport Vehicles: Transporting precast concrete beams from manufacturing facilities to construction sites.
  5. 5. Electric Hoists & Winches: Assisting in lifting smaller components and tools in areas where larger cranes are impractical.
  6. 6. Jib Cranes: Supporting localized lifting tasks on construction sites, such as moving materials within a specific area.
  7. 7. Transfer Carts: Transporting heavy construction materials across sites or between different project areas.

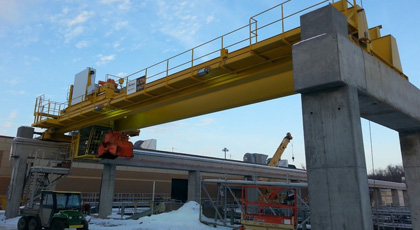

    Overhead Crane

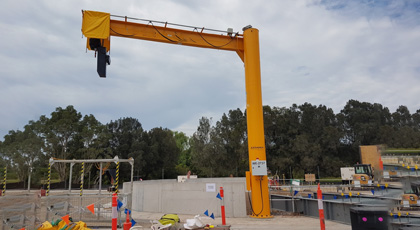

    Gantry Crane Jib Crane



    Beam Launcher Crane

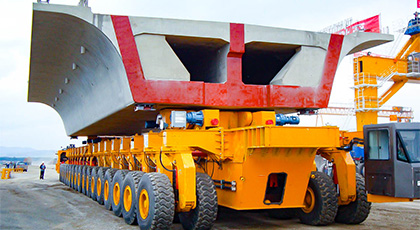

    Precast Beam Transpor Vehicles

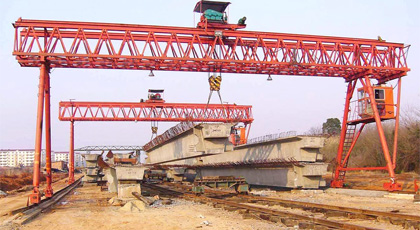

    Precast Beam Launcher Gantry Crane

    • • Capacity: 60 ton-300 ton
    • • Bridge Span: 20m-50m
    • • Rotation Radius: 200m-350m
    • • Applied Tilted Angle: 0-45°
    • • Capacity: 20 ton-80 ton
    • • Climbing Gradient: 5°
    • • Color: Customized
    • • Capacity: 50 ton-300 ton
    • • Crane Span: 20m-40m
    • • Liting Height: 12m-30m
    • • Working Class: A5

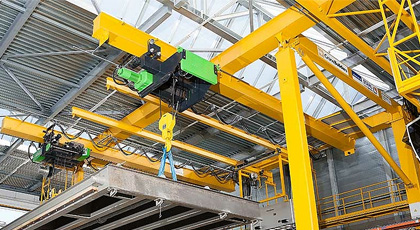

    Electric Hoist

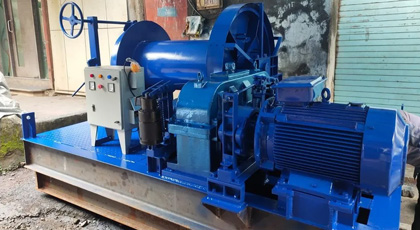

    Electric Winch Machine

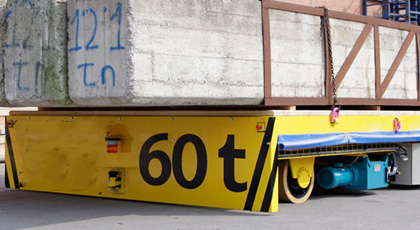

    Transfer Cart

    • • Type: wire rope hoist, chain hoist
    • • Sling Type: wire rope/chain sling
    • • Power Supply: 3phase 50Hz 380V or customized
    • • Lifting Capacity: 0.5~50 ton
    • • Capacity: 60 ton-300 ton
    • • Sling Type: wire rope/chain sling
    • • Power Supply: 3phase 50Hz 380V or customized
    • • Lifting Capacity: 0.5~5 ton
    • • Type: rail-guided transfer cart, AGV transfer cart
    • • Rated Capacity: 5~75 ton
    • • Power Supply: 3phase 50Hz 380V or customized
    • • Working Class: A5
