Product Description

Electromagnetic overhead cranes are engineering machinery that use electromagnetic principles to lift and manipulate various magnetic objects. They play an important role in handling and unloading heavy workpieces, metal materials, iron products, scrap steel and other items. Electromagnetic overhead cranes are structurally composed of a lifting trolley, a bridge, a trolley running mechanism, electrical equipment, and electromagnetic slings. It is suitable for loading, unloading and stacking operations in rolling lines of steel companies, finished product warehouses, shipyard steel material yards, blanking workshops, scrap recycling stations, steel plant scrap warehouses, lifting steel ingots and billets, loading small and medium-sized electric furnaces in steelmaking, etc. . To ensure the safe operation of the crane, an electromagnetic holding control system can be added to prevent cargo from falling in the event of a sudden power outage.

Technical Parameters

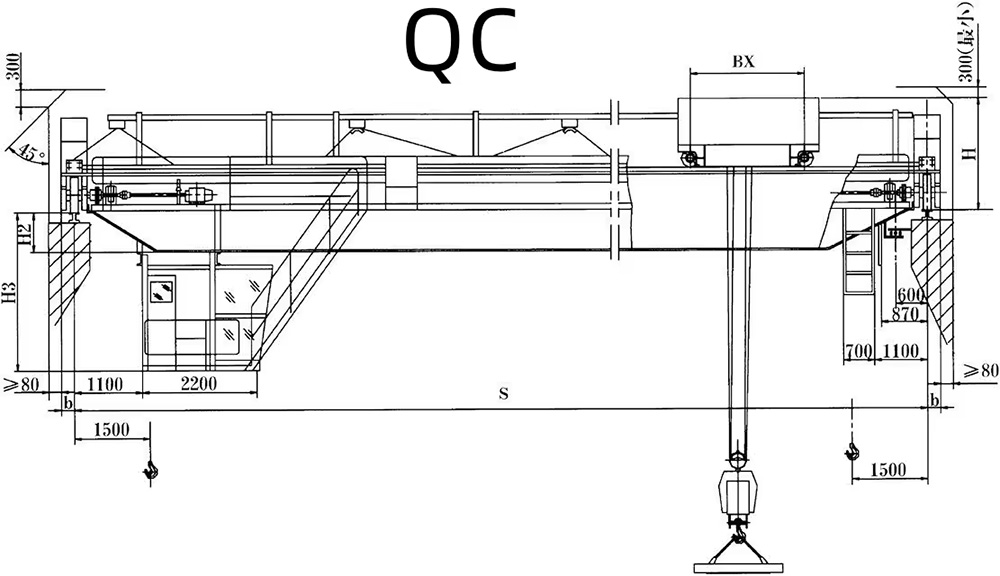

16-3.2T-Double-Girder-Beam-Bridge-Travelling-Crane-with-Magnetic-Chuck-for-Workshop-11



Lifting weight

t 16/3.2 20/5 32/5

Working class

A6

Span

m 10.5-31.5

Max. lifting height

m

16/18

12/14

16/18

Speed hoisting m/min 13 12.6 9.5

travelling speed

44.6

44.6

43.4

travelling of trolley

76 89 76 89 76 89

Steel track recommend

P43

Power source

3-phase A.C 50HZ 380V

Advantages

  • 01 High Load Capacity: Capable of lifting and moving very heavy loads.

  • 02 Precise Handling: Electromagnetic control allows for precise handling and placement of materials.

  • 03 Enhanced Stability: Double girder design provides greater stability and support.

  • 04Versatility: Can handle a wide range of ferromagnetic materials and products.

Application

  • 01Steel Mills: Handling steel plates, billets, and other ferromagnetic materials.

  • 02Shipyards: Lifting and transporting heavy metal components.

  • 03Warehouses: Organizing and moving ferromagnetic goods.

  • 04Scrap Yards: Sorting and handling metal scrap efficiently.
