Product Description

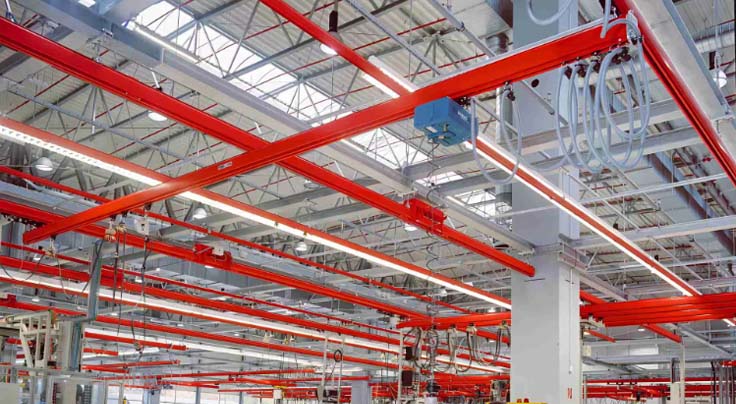

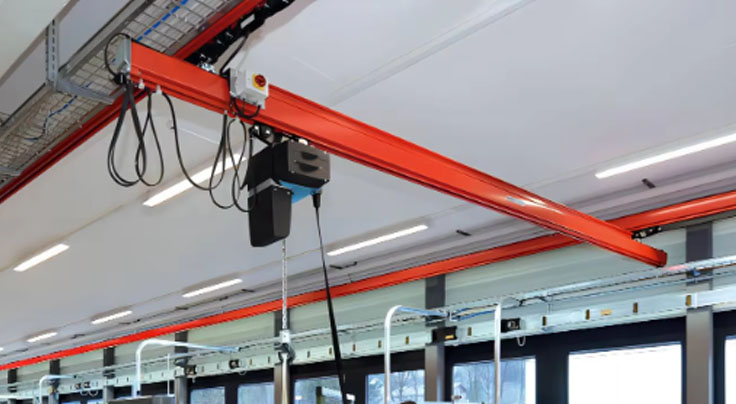

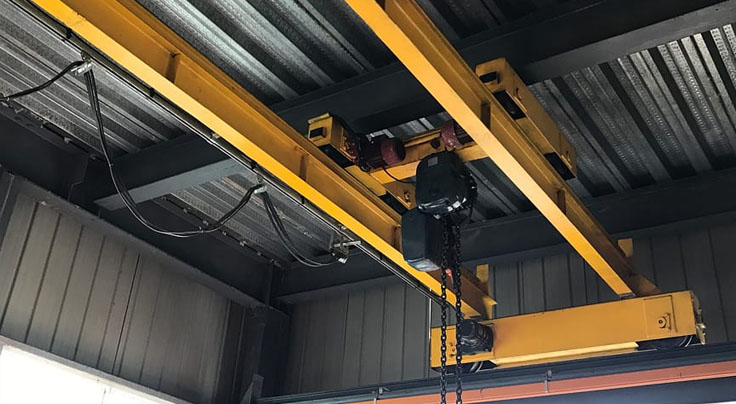

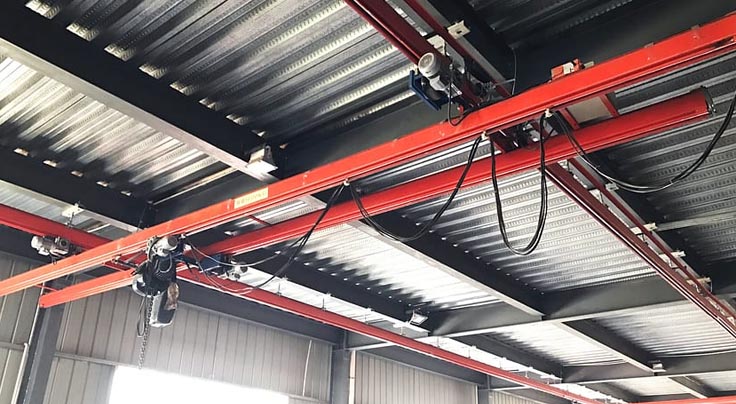

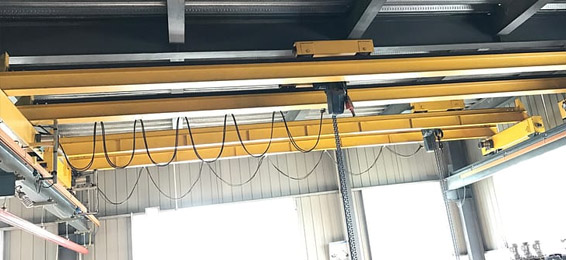

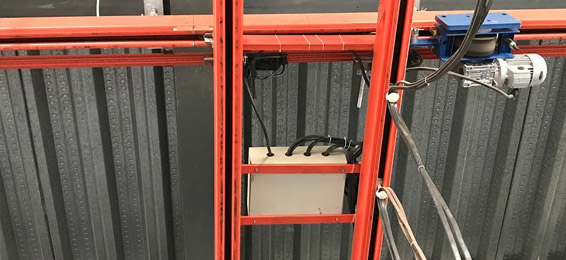

KBK crane, full name KBK flexible crane, is a new type of lifting equipment with high flexibility. It is mainly composed of rail, suspension device, driving device, spreader and other parts.KBK crane adopts suspension design, can move freely in three-dimensional space, to realize all-around item handling.

KBK crane also can be called Workstation overhead crane.Workstation overhead crane with a lifting capacity of 0.125t-2t, and a wide range of applications. The biggest advantage of our company's Workstation overhead crane is that it can be easily expanded and adapted to new requirements at any time, and it can develop together with your business.

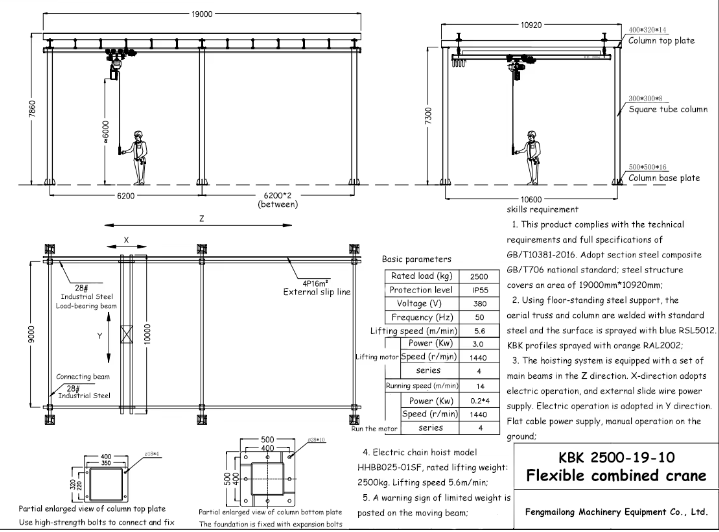

    Technical Parameters

    kbk overhead crane2

    capacity

    50 kg - 5t

    span

    0.7-12m

    Lift height

    2-8 US

    Lift speed

    1-22 m/min

    Travel speed

    3.2-40 m/min

    Proletariat

    A1-A6

    Power supply

    According to your requirements

    Characteristics

    • Rated load: 125-2,000 kg

      Light weight and high bending strength

      The friction resistance of aluminum alloy track is small

      Long suspension distance and long span stroke

      KBK overhead crane
    • Easy to install, modify and expand

      The working area under the crane is maximized

      Long life and reduced maintenance cost

      Quick installation with standardized profiles and bolted connections

      KBK overhead crane

    Advantages

    • 1 Good Reliability and High Stability: The KBK rail system is made with high precision. The sturdy components can ensure stable operation.

    • 2 Flexible Adaptability: KBK cranes are highly customizable, allowing for flexible configurations that can adapt to different workspace layouts and lifting needs.

    • 3 Easy Installation and Economical: The modular components allow for quick and straightforward assembly and installation, minimizing downtime and labor costs associated with setup.

    • 4 Versatility: Suitable for a wide range of applications, including assembly lines, workshops, warehouses, and more.

    Application

    • 1 Assembly Lines: Ideal for lifting and positioning components in manufacturing assembly lines, improving efficiency during the assembly process.

    • 2 Warehousing and Distribution: Used for moving pallets, packages, and heavy items within warehouses, enhancing productivity in sorting, loading, and unloading tasks.

    • 3 Manufacturing: Commonly employed in machine shops and manufacturing facilities for handling tools, parts, and raw materials, facilitating smooth production workflows.

    • 4 Automotive Industry: Assists in lifting and positioning automotive parts during assembly, maintenance, and repair operations in auto manufacturing plants and service shops.
