Product Description

Rubber tyred container gantry crane is a type of mobile gantry crane used primarily for stacking and moving containers in container terminals, ports, and storage yards. Unlike rail-mounted gantry cranes, RTGs are equipped with rubber tires, allowing them to move freely within the yard.

Technical Parameters

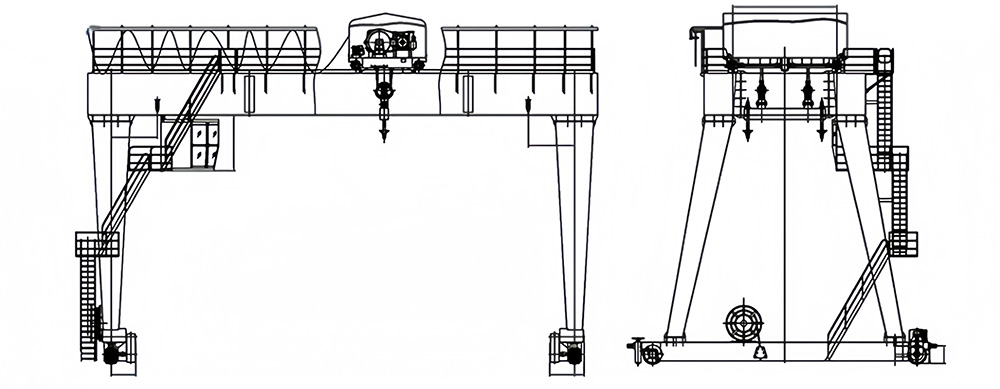

Huasui–Rmg-Type-Double-Beam-Rail-Mounted-Harbour-Container-Gantry-Crane-30t-45t-10



Lifting speed Trolley speed Crane speed Container
Capacity (t) 30 35 45 50
Span (m) 18~35 18~35 18~35 18~35
Lifting speed(m/min) 12.5 9.5 9.8 9.2
Lifting height (m) 12.3~21 12.3~21 12.3~21 12.3~21
Trolley speed(m/min) 0-20 0-20 0-20 0-20
Crane speed 0-30 0-30 0-30 0-30
(m/min) A6-A8 A6-A8 A6-A8 A6-A8
Work duty QU80 QU80/QU100 QU100/QU120 QU100/QU120

Characteristics

  • The crane has a trolley that runs along the girders, equipped with a hoist that lifts and lowers containers. The trolley's movement allows for precise positioning of containers, which use a spreader to lift and handle containers. The spreader can adjust to different container sizes (e.g., 20-foot, 40-foot) and securely lock onto the container’s corners.

    Rubber-Tyred-Container-Gantry-Crane-7

Advantages

  • 01Mobility and Flexibility
    The rubber tyred design allows RTGs to move freely within the yard, providing flexibility in container handling and reducing the need for fixed infrastructure.

  • 02High Stacking Capacity
    RTGs can stack containers high and wide, making them ideal for maximizing storage space in busy container terminals and storage yards.

  • 03Operational Efficiency
    Advanced control systems and automation features enable precise and efficient handling of containers, reducing turnaround times and operational costs.

  • 04Versatility
    RTGs can handle various container sizes and types, making them versatile for different container handling needs.

Application

  • 01Container Terminals and Ports
    RTGs are extensively used in container terminals and ports for stacking and organizing containers, facilitating efficient loading and unloading of ships.

  • 02Intermodal Yards
    In intermodal yards, RTGs transfer containers between different modes of transportation, such as trucks and trains, supporting seamless logistics operations

  • 03Storage Yards
    RTGs are used in storage yards to optimize space by stacking containers in multiple rows and tiers, improving the overall storage capacity.
