Straddle Carrier

Send Message Inquiry Now

Product Description

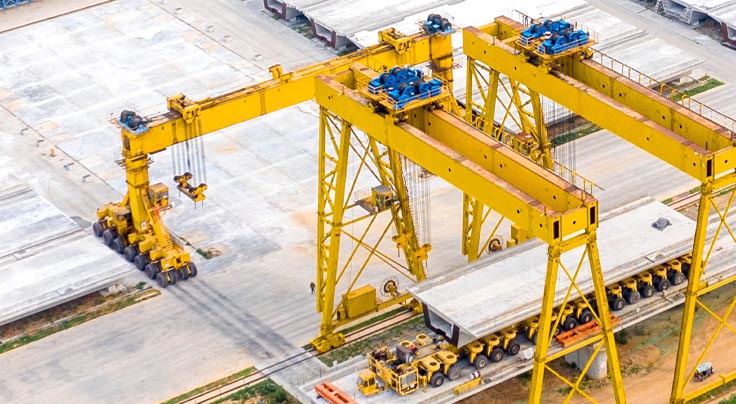

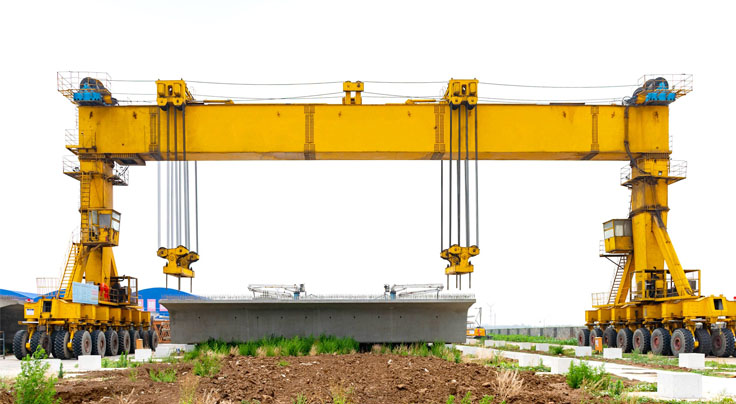

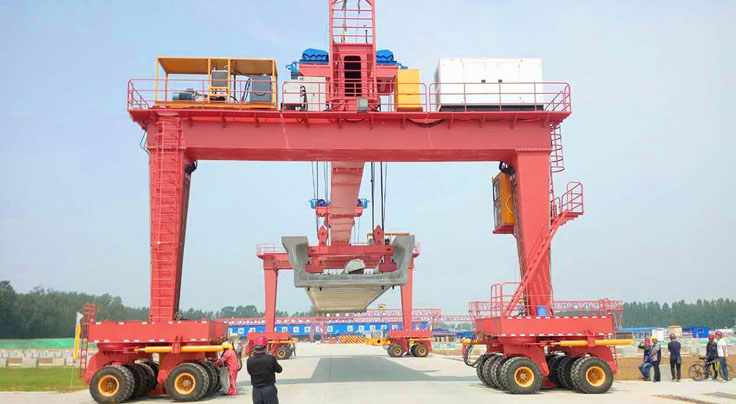

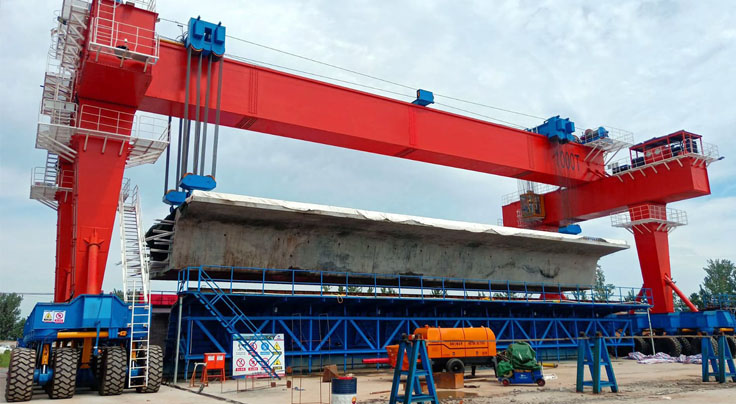

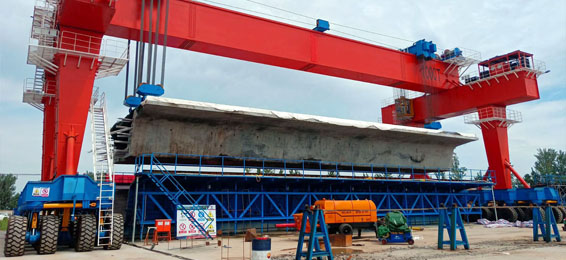

Straddle Carrier uses heavy-duty rubber tires to walk, hydraulically controls steering, and is powered by a diesel engine. Compared with ordinary gantry cranes, there is no need to erect tracks, and can walk freely on special hardened roads without being restricted by tracks and power supply systems. The scope of application is wider, which can be used in the handling and storage area of prefabricated beams, and can also be widely used in factories, warehouses, docks, ports and other occasions.

Technical Parameters

ltem	SC50	SC100	SC150	SC200	SC250
Capacity (t)	50	100	150	200	250
SpanA (m)	7	7.5	35	38	38
Lifting height (m)	6	8	7.5	9	9
Lifting speed(m/min)	0-1/0~2	0-3.5	0-1/0-2	0-1/0-2	0-1/0-2
Trolley speec(m/min)	0~1.5	0~1.5	0-1.5	6	6
Traveling speed (m/min)	0-28/0-56	0-28/0-56	0-28/0-56	0-17/0~24	0-17/0-24
Number of tire	8	8	16	16	32
Working duty	A6	A6	A6	A6	A3
Operation	Cabin
Power Source	Diesel generators
Adapt to the slope	0.02

Characteristics

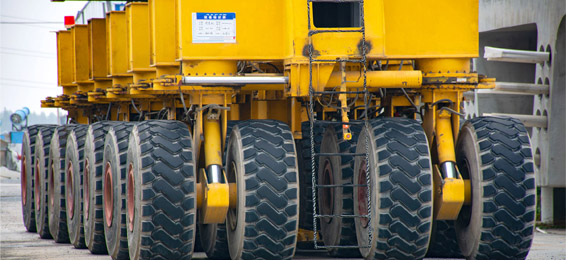

1.Wear-resistant and reliable heavy-duty rubber tires;

2.Straight, horizontal, oblique, and on-the-spot turning are more flexible;

3.The hydraulic system of the whole crane has few vulnerable parts and is easy to maintain;

4.110% dynamic load test, 125% static load test;
5. PLC control is equipped with emergency stop, overload, lifting limit, anemometer, and safety monitoring system;

6.Rexroth/Danfoss/Bucher and other internationally renowned hydraulic systems;

7.Finite element and dynamic simulation technology is used to ensure steel structure useful life over 20 years;

8.Painting is in accordance with the port standards. After sandblasting treatment, then primer, middle paint and top coating start in sequence.;

Advantages

01 High reliability: Compared with old-fashioned lifting equipment,it is safer,more efficient, and has been operation. it can handle about 10 contains per hour, which can be tilted and dumped.
02 Wide application: It can enter the warehouse and handle various oversized loads, such as wind power towers,blades ,tanks structural parts,prefabricated ars,etc.
03 Can be customized:The models and spreaders can be customized according to the cargo size.

Application

01 Pipe and Tubing Handling
02 Steel Mill
03 Heat Exchanger Bundle Transport
04 Refineries
05 Steel Erection
06 Ship Building
