Product Description

The chain hoist is an efficient and versatile light and small lifting electric hoist that uses an electric chain to move the load vertically. It can be used with bridge cranes, gantry cranes, and jib cranes to achieve efficient material handling.

The most suitable lifting height for the chain hoist is 3-12 meters. If the lift is too high, it will cause the chain to fail. A single chain is configured for less than 5 tons, and a double chain is configured for more than 5 tons. It can shorten the distance between the machine body and the beam rail, suitable for operations in low buildings, especially for temporary factories or places where the internal effective lifting space is expanded. The most important parts of building a machine are the chain and brake system.

The electric drive of the chain hoist can quickly and reliably move materials and products without increasing physical exertion or the number of workers required. In addition, due to its compact and lightweight design, the chain hoist provides an excellent solution for work environments with limited space. They can be easily integrated into existing crane systems, making them an indispensable tool for companies that want to optimize processes and improve workplace safety.

Technical Parameters

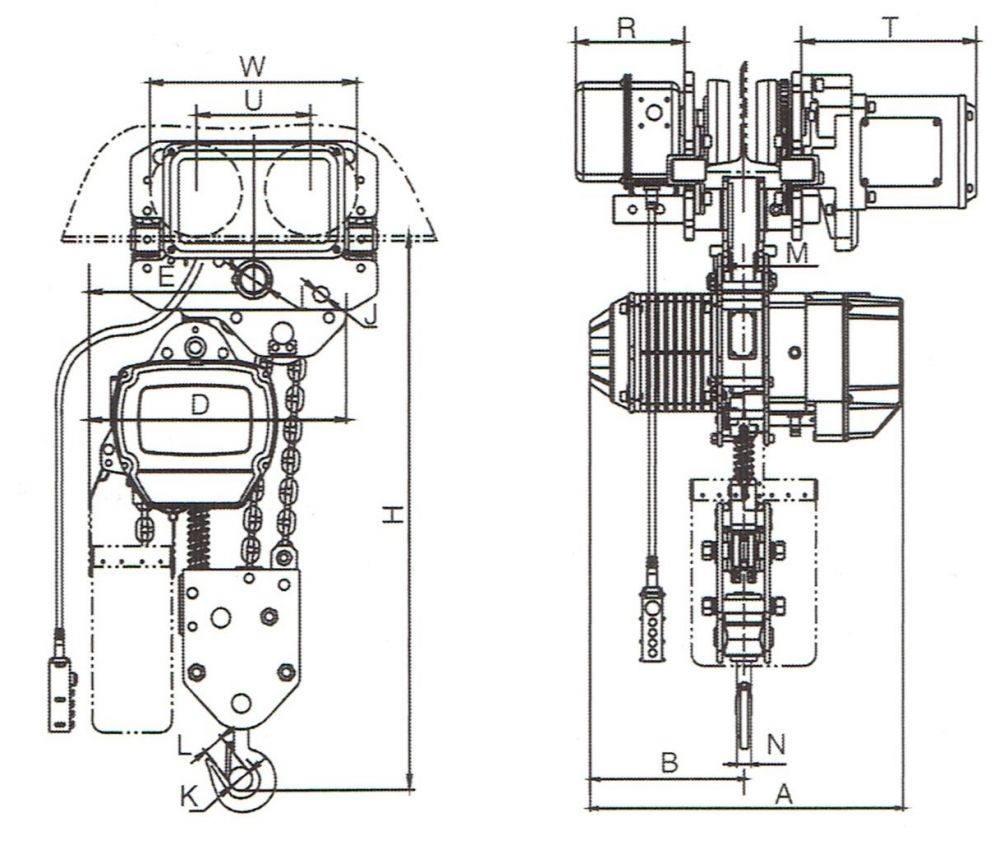

环链葫芦



Type Lifting Capacity( Ton) Lifting Speed(m/min) Lifting Motor Chain Specifications Weight(kg)
Power(kw) Phase Phase 6.3 32/46
HHBB 0.5-01 0.5 7.2 1.1 3 380 71 59/64
HHBB 01-01 1 6.8 1.5 3 380 6.3 49/53
HHBB 01-02 1 3.6 1.1 3 380 10 109/121
HHBB 02-01 2 6.6 3 3 380 7.1 68/73
HHBB 02-02 2 3.4 1 .5 3 380 11.2 113//125
HHBB 03-01 3 5.6 3 3 380 10 127/139
HHBB 03-02 3 4.4 3 3 380 11.2 138/150
HHBB 03-02 5 2.8 3 3 380 11 2 192/208
HHBB 7.5-03 7.5 1.8 3 3 380 71 49/53

Characteristics

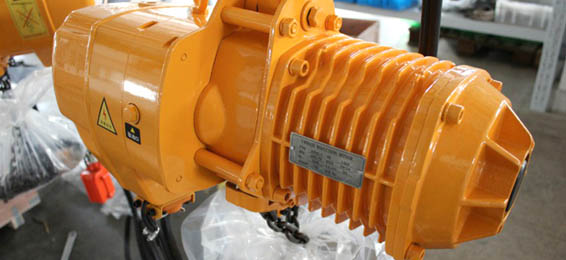

  • Motor: The motor is the heart of the electric chain hoist. It provides the energy required to raise or lower the load. Modern electric chain hoists are usually equipped with high-performance motors, which are known for their ruggedness and long service life. These motors are designed to work efficiently even under heavy load conditions.

    Transmission: The gearbox is responsible for transferring the energy produced by the engine to the chain. It converts the high speed of the motor into a lower usable speed so that the load can be moved with high precision. The gearbox plays a vital role in determining the performance of the lifting speed and the general performance of the chain hoist.

  • Chain: The chain is the element that actually carries the load. It is usually made of high-strength steel to ensure maximum durability and safety. The chain is wrapped around the sprocket of the chain hoist and is moved by the driving force of the engine and transmission to raise or lower the load.

    Controls: Controls allow the operator to control the chain hoist. This can be done via a pendant controller connected directly to the chain hoist or via a wireless remote control. Controls typically include buttons or switches for raising and lowering the load and controlling speed. Modern chain hoists often offer advanced control options, including programmability and diagnostic features, allowing precise operation and monitoring of the equipment.

Advantages

  • 01 Thickened casting shell: Thickened integral casting shell, impact-resistant, safe, and sturdy.
  • 02 Safety explosion-proof motor: Motor protection grade IP66/IP65, all motors have overheating protection, equipped with Class Finsulation and Class B temperature rise.
  • 03 Explosion-proof handle operation: Ergonomic design, explosion-proof level handle operation, safe and reliable.
  • 04 Compact and exquisite structure: Small size, light weight, low noise, aesthetically pleasing appearance, strong universality,the overall structure is convenient for disassembly and assembly, easy for maintenance.
  • 05 Customized: Provides customized cost-effective solutions.

Application

  • 01 Manufacturing: For moving heavy parts and machinery.
  • 02 Construction: For lifting building materials.
  • 03 Warehousing: For handling inventory and heavy goods.
  • 04 Theater and Entertainment: For moving stage equipment and props.
