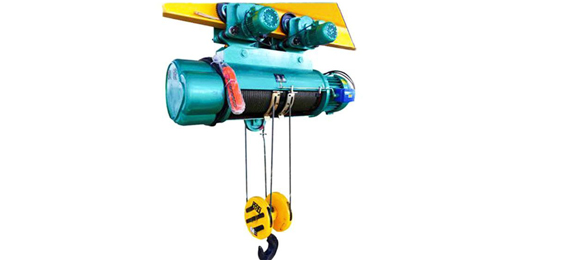

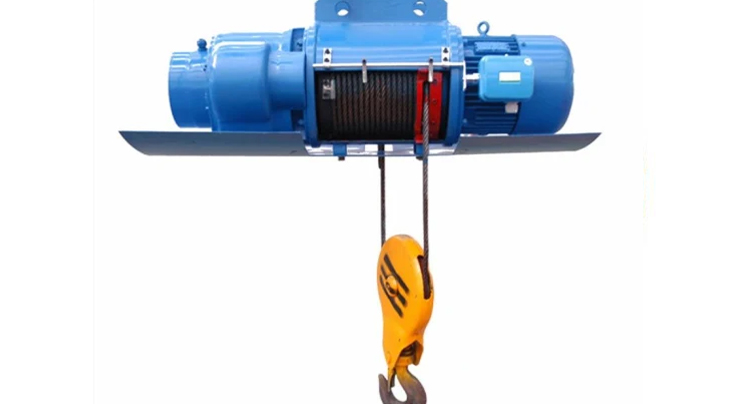

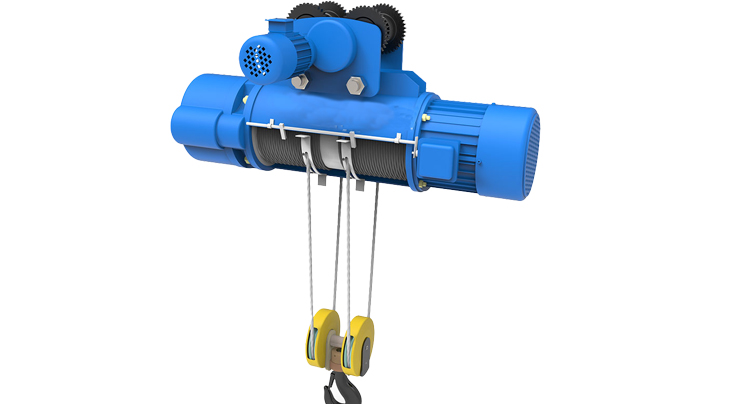

Wire Rope Electric Hoist

Send Message Inquiry Now

Product Description

Wire rope electric hoist is a special lifting equipment. Wire rope electric hoist has different types such as CD1, MD1, explosion-proof, metallurgical, etc. As a general lifting device, it can be installed independently on I-beam, or it can be installed and used with lifting equipment such as single girder overhead crane, double girder overhead crane, gantry crane, jib crane, etc. It is widely used in factories, mines, ports, cargo storage areas and shops, and is essential to improve work efficiency and working conditions.

Technical Parameters

CD/MD Electric Hoist
Lifting weight(t)			1T	2T	3T	5T	10T
Lifting height (m)			6/9/12/18/24/30	6/9/12/18/24/30	6/9/12/18/24/30	6/9/12/18/24/30	6/9/12/18/24/30
Lifting speed (m/min)			8 8/0.8	8 8/0.8	8 8/0.8	8 8/0.8	7 7/0.7
Running speed (m/min)			20	20	20	20	20
Bonding number(n/hr)			120	120	120	120	120
Wire rope		Diameter	7.4m/m	11mm	13mm	15mm	15mm
Wire rope		Structure	D-6*37+1	D-6*37+1	D-6*37+1	D-6*37+1	D-6*37+1
I-beam models			16-28b	20a-32c	20a-32c	25a-45c	32a-63c
Motor	Hoist	Power	1.5 1.5/0.2	3 3/0.4	4.5 4.5/0.4	7.5 7.5/0.8	13 13/2.0
	Hoist	Speed	1380	1380	1380	1400	1400
	Operation	Power	0.2	0.4	0.4	0.8	0.8
	Operation	Speed	1380	1380	1380	1380	1380
Type of work			M3	M3	M3	M3	M3
Institution level			25%	25%	25%	25%	25%

Characteristics

1. Electric Motor: Provides the lifting power. The CD model typically has a single-speed motor, while the MD model offers dual-speed operation for better control and precision.

2. Wire Rope: Strong, durable wire rope wound on a drum for lifting and lowering loads.

3. Drum and Gearbox: The drum holds the wire rope and the gearbox controls the lifting speed and torque.

4. Push button switch: manual operation, easy to operate, with two modes of rope operation and wireless remote control.

Advantages

1 Efficiency: Electric hoists provide fast and efficient lifting and lowering of loads.
2 Precision: MD hoists offer precise control with dual-speed operation, making them suitable for delicate tasks.
3 Durability: Built to withstand heavy industrial use with robust construction.
4 Safety: Equipped with safety features like overload protection and limit switches.
5 Versatility: Suitable for a wide range of applications and can be mounted on various types of cranes and structures.

Application

1 Manufacturing: Used for lifting and moving heavy machinery, components, and raw materials.
2 Warehousing: Facilitates loading and unloading of goods and materials.
3 Construction: Helps in lifting construction materials and equipment to different heights.
4 Utilized for handling ship components, maintenance, and repair.
5 Automotive Industry: Used in assembly lines for lifting parts and assemblies.
