How to Design a Jib Crane Layout for a Machine Shop: Key Considerations and Case Study

Overview

In machining plants, a proper jib crane layout dictates the workshop production rhythm. Facing heavy mold changes and frequent machine loading daily, forklift handling is inefficient. It also easily damages precision workpieces. However, many clients fall into a fatal misunderstanding. They think choosing the right crane parameters is enough. In fact, the right equipment doesn’t mean proper placement. If the installation spot is off by half a meter, the hook won’t reach the spindle. Or the jib might interfere with factory columns in mid-air. Buying expensive equipment is a waste without realizing its value.

This article combines field experience to detail how to avoid planning blind spots. We will help you build a scientific lifting scheme step by step. It balances efficiency, space, and safety.

Are you planning a lifting system for your machining workshop?
[Click here to upload your project data]
HSCRANE will customize an exclusive jib crane layout plan for you. This is based on your workshop size, lifting weight, and workstation needs.

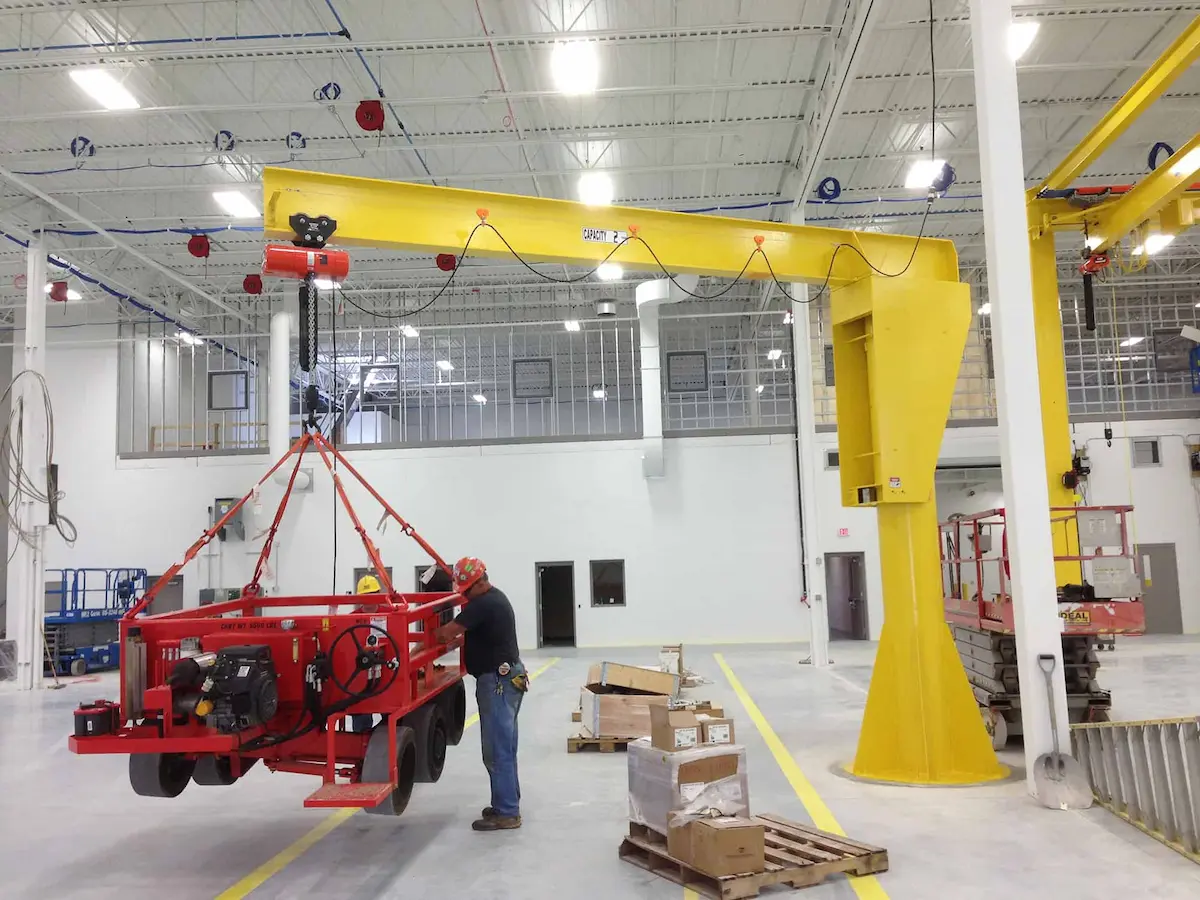

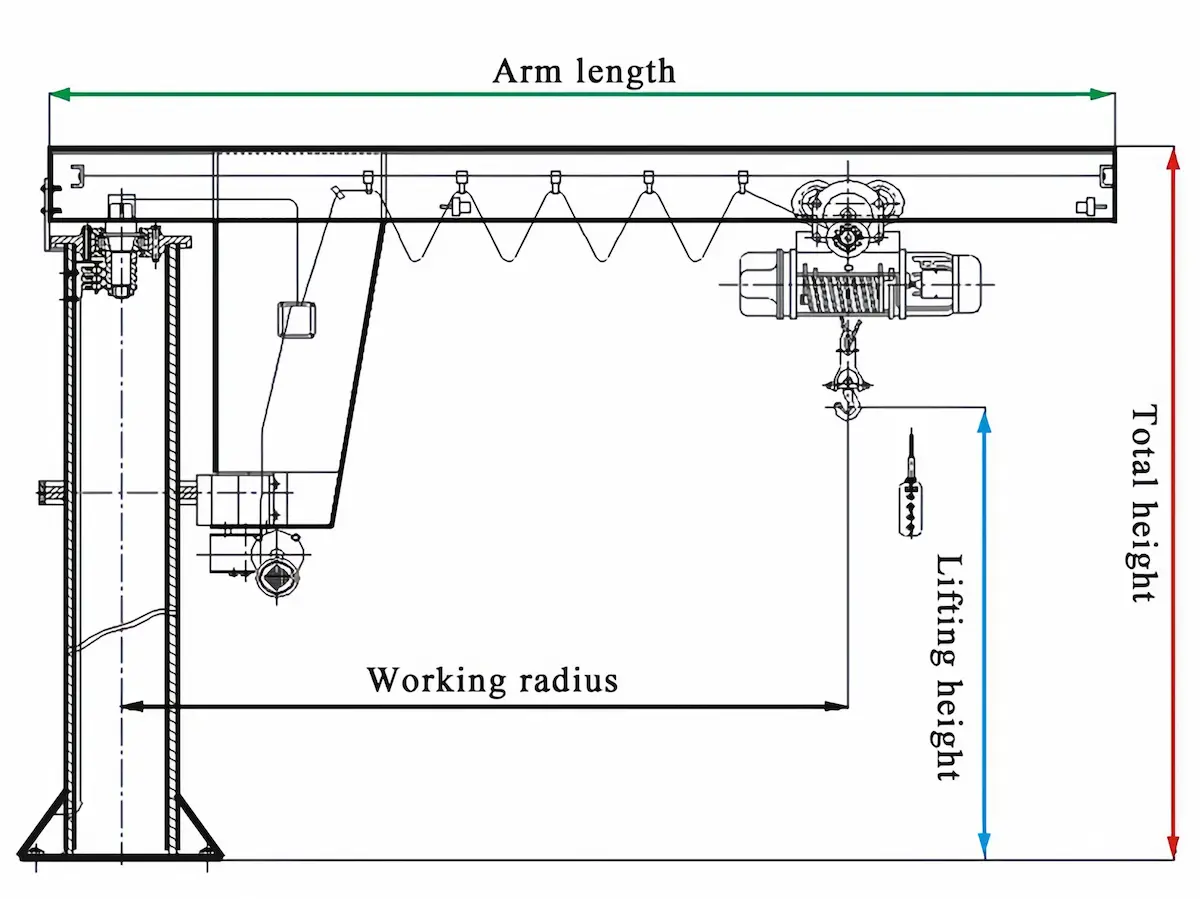

What parameters to determine before designing a machining plant jib crane layout?

Relying on feelings is unworkable before planning with drawings. Any jib crane needs repeated confirmation of hard metrics with engineers. This is vital before releasing a plan. It decides if the equipment works. It prevents the embarrassment of rework after installation.

5 key points for machining plant jib crane layout design

After selecting parameters, layout planning begins. A jib crane layout is not just placing bolts in empty spaces. We must integrate it into the workshop production rhythm.

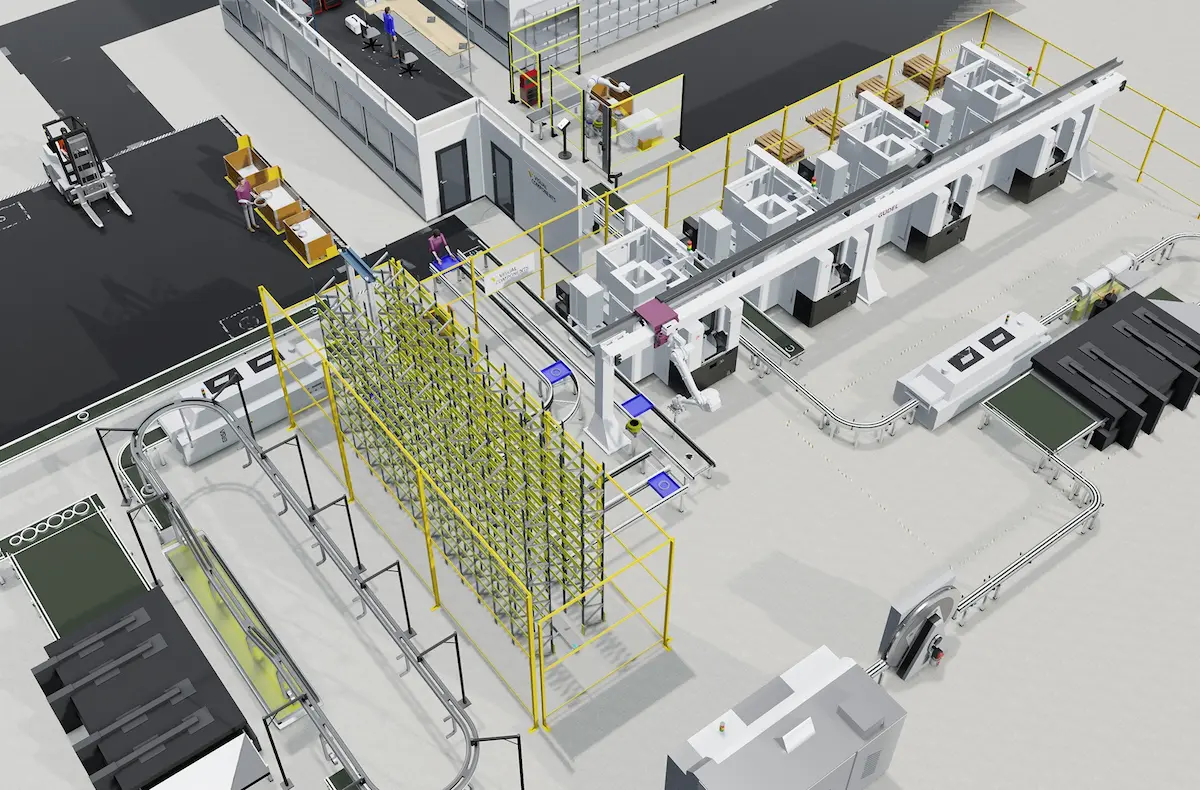

Plan lifting routes based on production flow

Excellent lifting routes should be natural and smooth. Before positioning, observe the workshop material flow first. It goes from raw materials to processing equipment. Then to inspection and finished goods areas.

• Reduce unnecessary repeated lifting:Try placing the crane pivot at the intersection of two processes. This reduces repeated lifting and mid-air turns.
• Precise coverage:Let the jib trajectory perfectly cover these core workstations. Operators can smoothly transfer materials by just turning the arm.

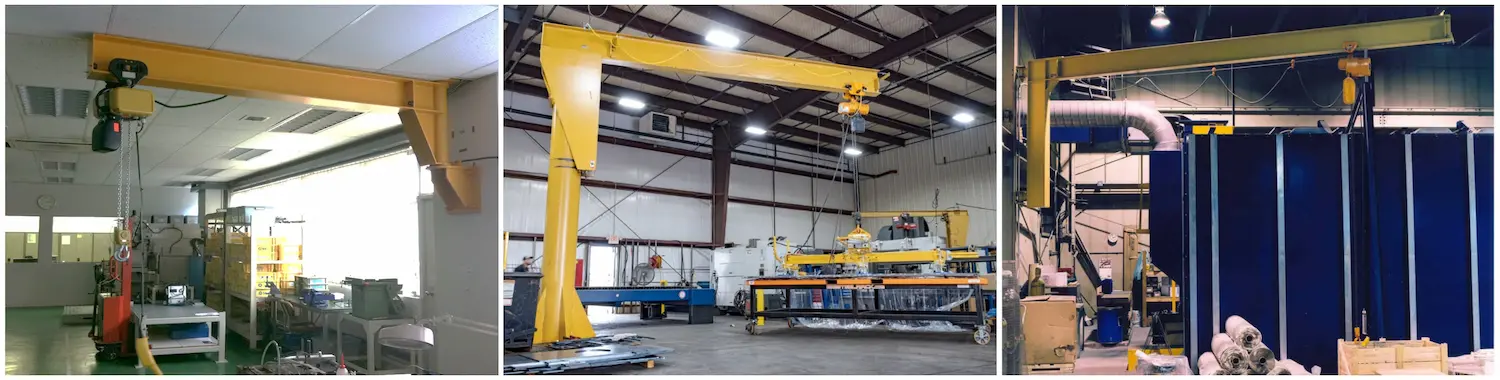

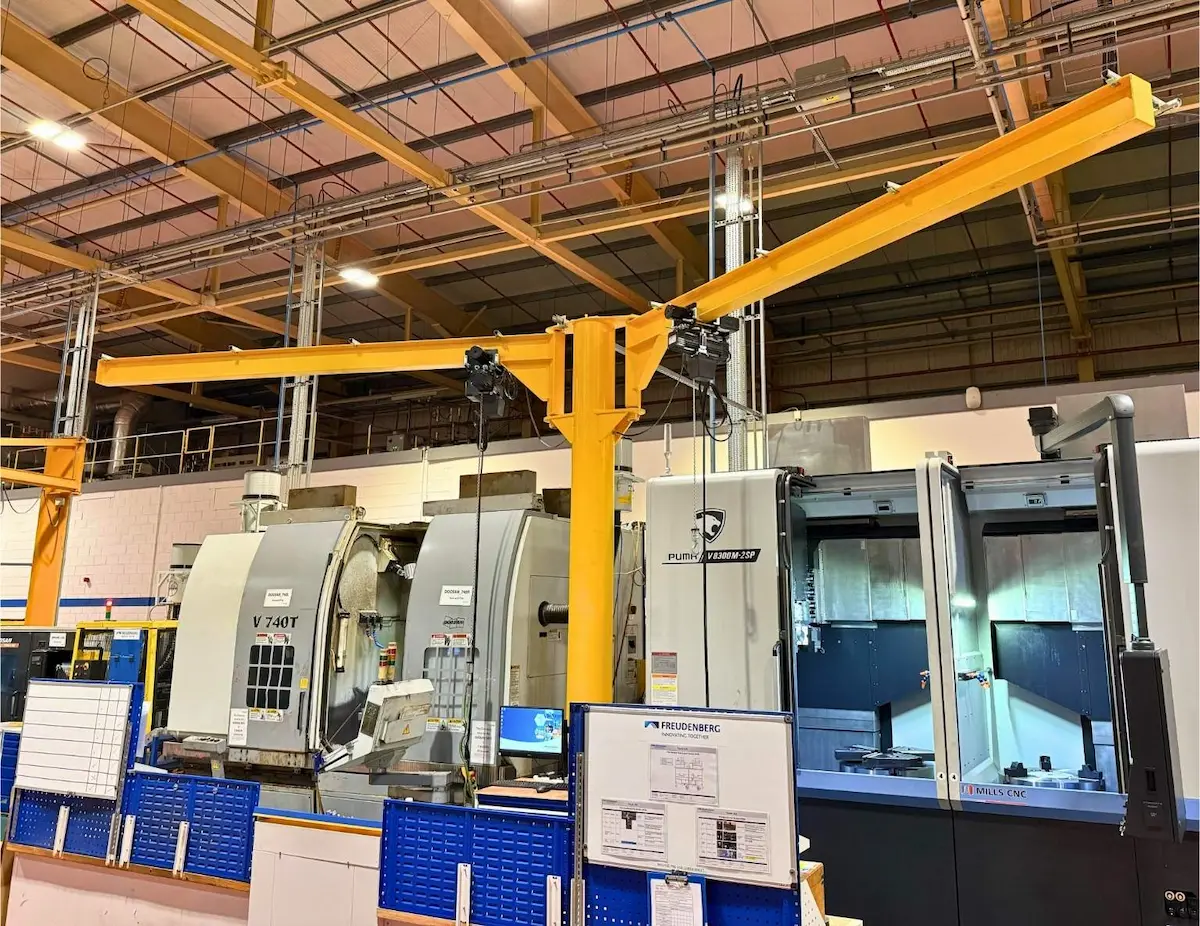

Determine the installation point based on equipment location

Machining workshops have various equipment. Each machine has different doors and inlets. The jib crane layout design must match the physical structure. This includes pillar or wall bracket positions:

• CNC machines/machining centers:They usually load from the top or front. The crane center should lean to the inlet’s side. This ensures direct delivery above the spindle during rotation.
• Lathes/grinders:This equipment is usually long and narrow. The jib installation spot is best at the side-rear. Or place it between two lathes. This meets lifting needs for chuck and tailstock areas.
• Assembly/inspection stations:Place it at the workbench’s diagonal corner. It doesn’t block the view. It also achieves full area coverage.

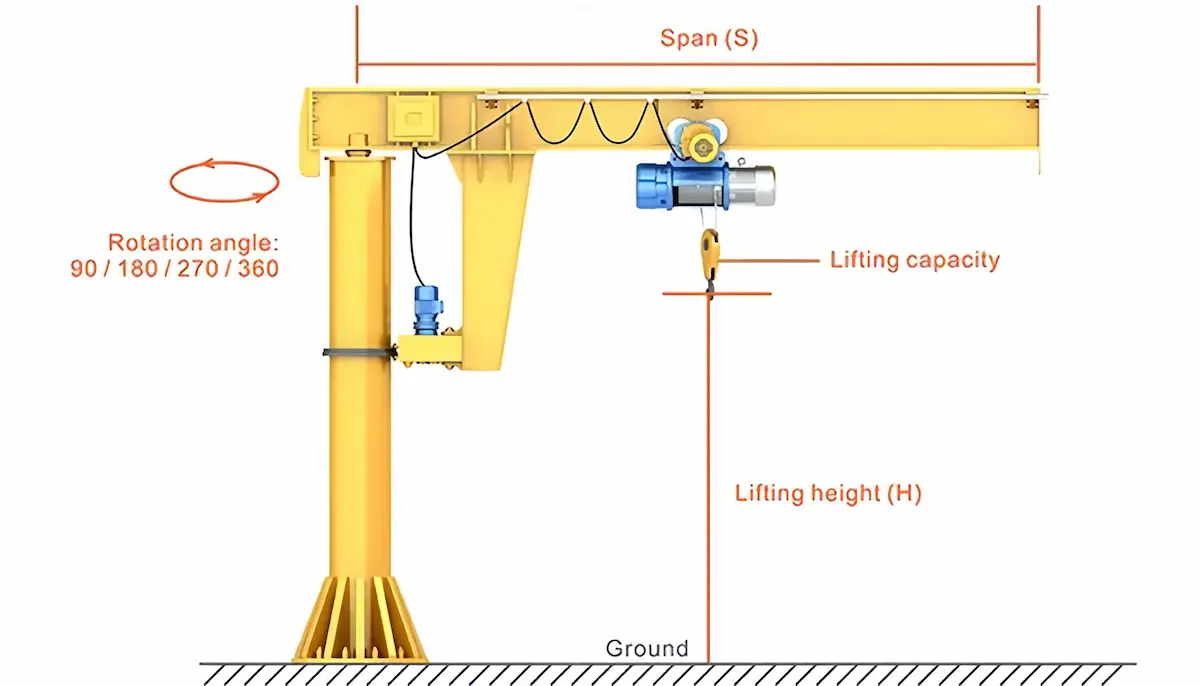

Determine coverage based on rotation radius

Not all stations need 360° rotation equipment. Based on physical interference on-site, limiting the rotation angle is safer:

• 90°/180° scheme:Ideal for wall-mounted jibs on walls or columns. It serves a single wall-mounted machine. It takes up no floor space.
• 270°/360° scheme:Suitable for workshop island areas. One pillar crane can serve 2 to 4 surrounding machines. This fits common flexible manufacturing cells.
• Avoid interference zones:Layout drawings must include overhead crane tracks. Add high material racks and open machine guard doors. The jib hitting other equipment is a layout taboo.

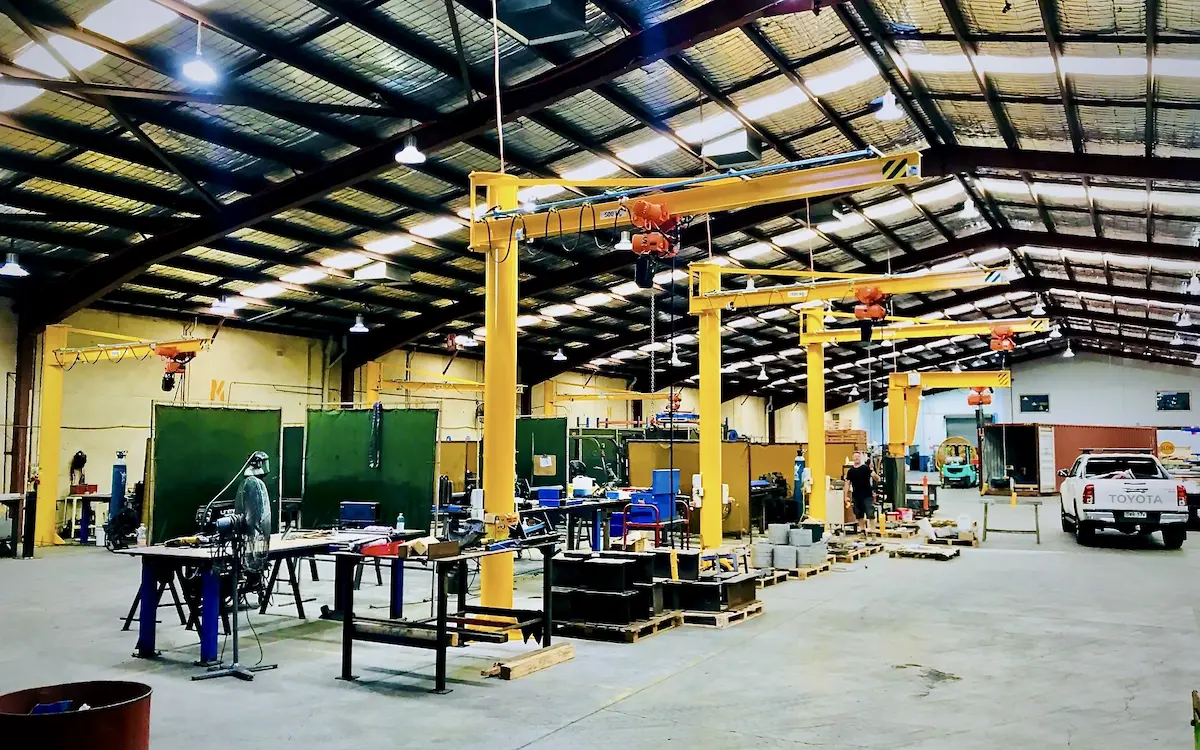

Reserve safety distance and operating space

Cranes are dynamically operating machines. Spatial layout must leave room for people to retreat:

• Anti-collision spacing:Keep enough equipment maintenance channels. Do this between the pillar, machines, and walls.
• Safe standing position:Operators need backward dodging space when lowering heavy parts. This applies when holding a pendant or remote. Never force operators into dead corners.
• Operating clearance:Look up to ensure the highest hook position is clear. It shouldn’t hit ventilation pipes, lights, or cable trays.

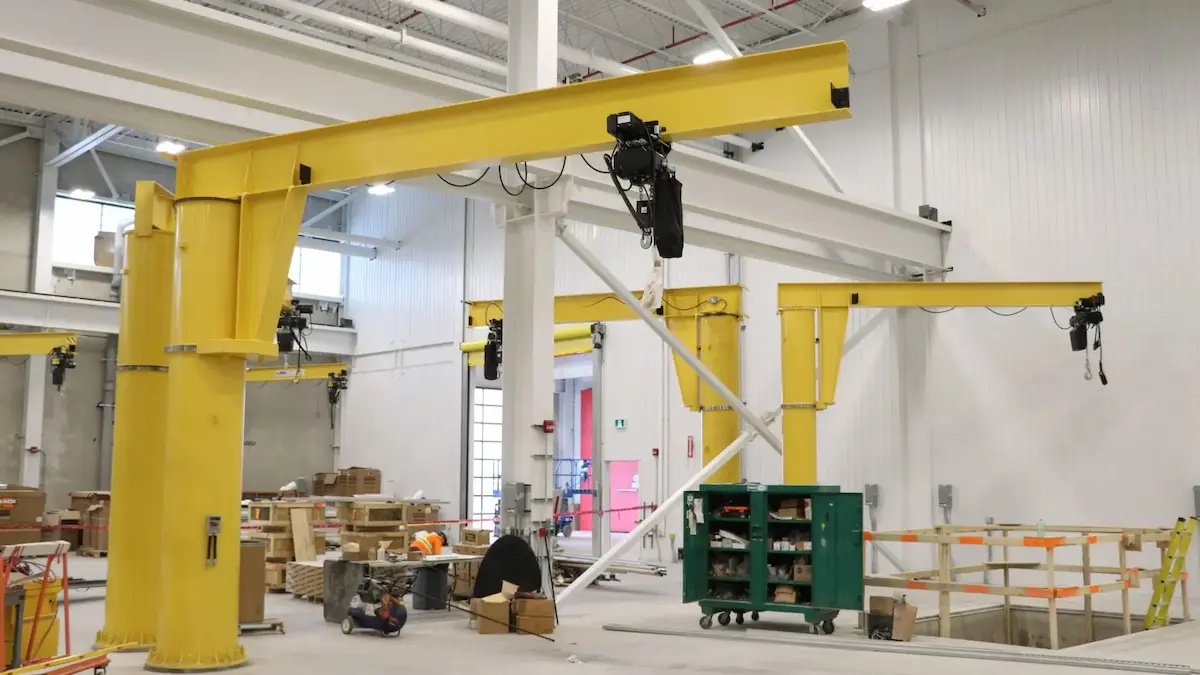

Consider future production line expansion

Machining enterprise production lines rarely remain unchanged. You might import two machining centers today. Next year, you might add a CMM nearby.

• Reserve space for new equipment:If space permits during foundation pouring and piping, extend coverage. Push the crane’s reach toward future new equipment areas.
• Modular thinking:Use modular designs fixed with flange base plates. This allows flexible disassembly for equipment moving or line expansion. No need to smash the floor later.

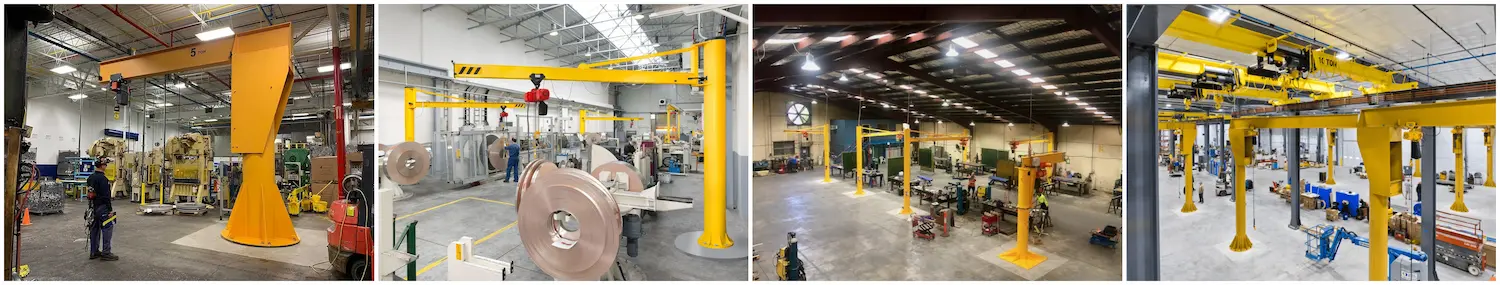

Common jib crane layout schemes in machining workshops

In actual projects, we summarized four common jib crane layout routines. Choosing the right layout saves equipment budgets. It also makes lines run smoother.

Want to know more about jib crane layout plans?
Find the best lifting mode for your workshop.
[Click to contact HSCRANE for machining crane layouts]. Get a practical case collection with CAD drawings and 3D modeling.

How to determine jib crane layout spots based on workshop size?

Workshop size directly dictates the crane’s landing spot. Large and small workshops have different methods and difficulties. The jib crane layout ideas are completely different.

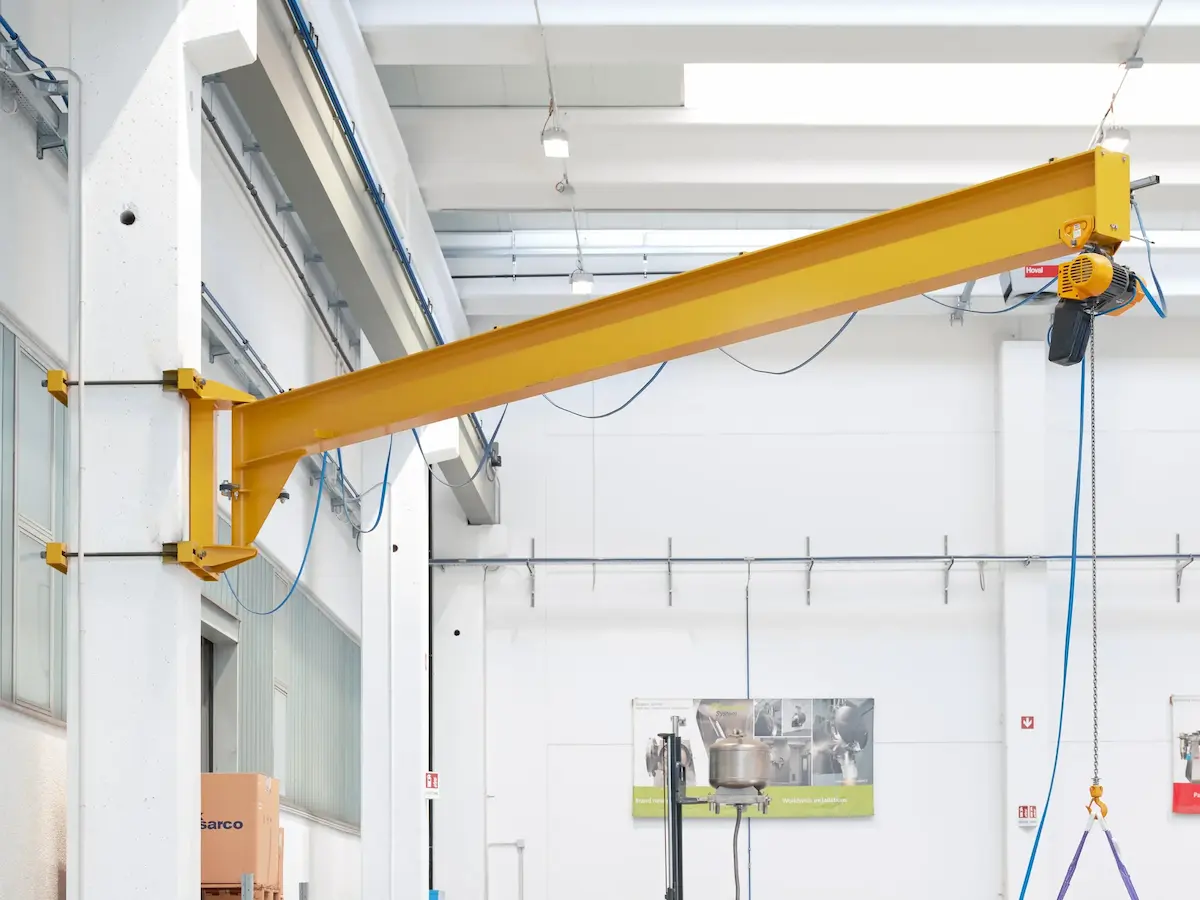

Small machining workshop

Small workshops face a major pain point: premium space. Floors are full of material carts, cabinets, and parts. Erecting a thick crane pillar leaves no turning room for forklifts.

• Layout idea:Reduce the occupied floor area as much as possible.
• Preferred scheme:We recommend using original load-bearing columns or solid walls. Adopt a wall-mounted jib crane. This zero-footprint scheme doesn’t affect ground logistics channels. It perfectly suits lathes and small milling machines along walls.

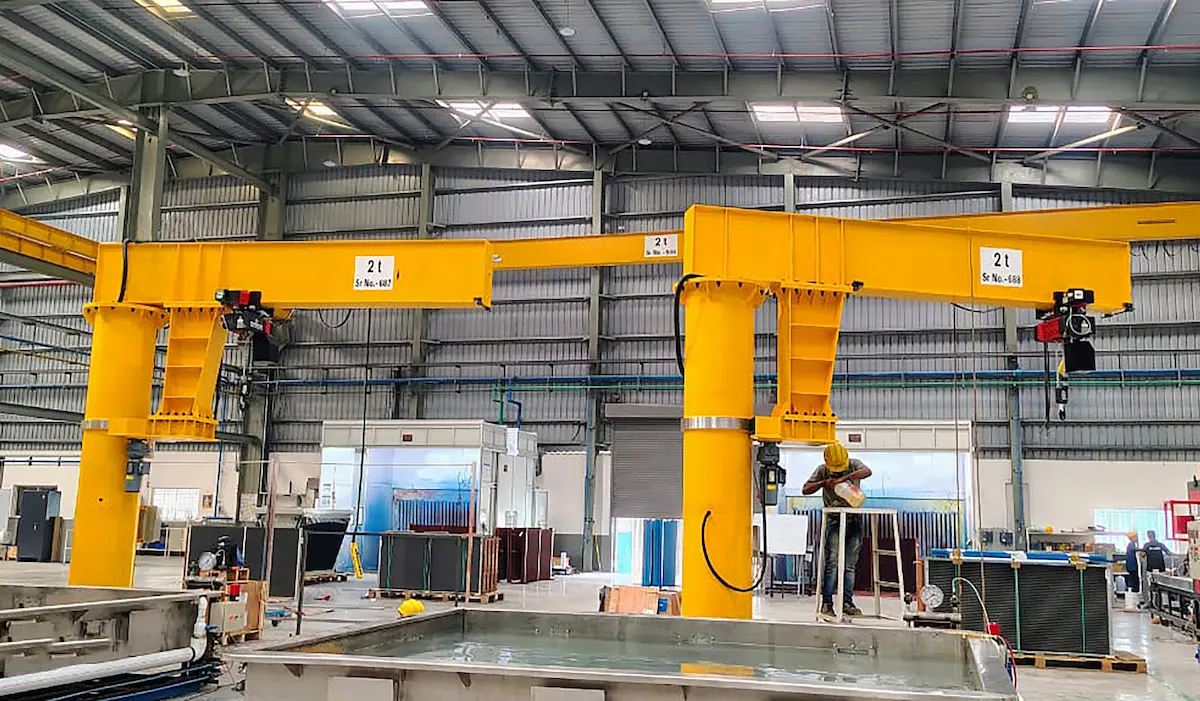

Medium machining workshop

Medium workshops usually have multiple parallel processing lines. Equipment density is high. The core of jib crane layout here is maximizing efficiency.

• Layout idea:Focus on multi-station coverage. This makes one equipment investment yield double benefits.
• Preferred scheme:Adopt a pillar jib crane. Select the geometric center of two or more machines. You must rationally plan machine spacing during this process. Ensure the jib can rotate freely. The pillar must not hinder operators’ normal inspection and walking.

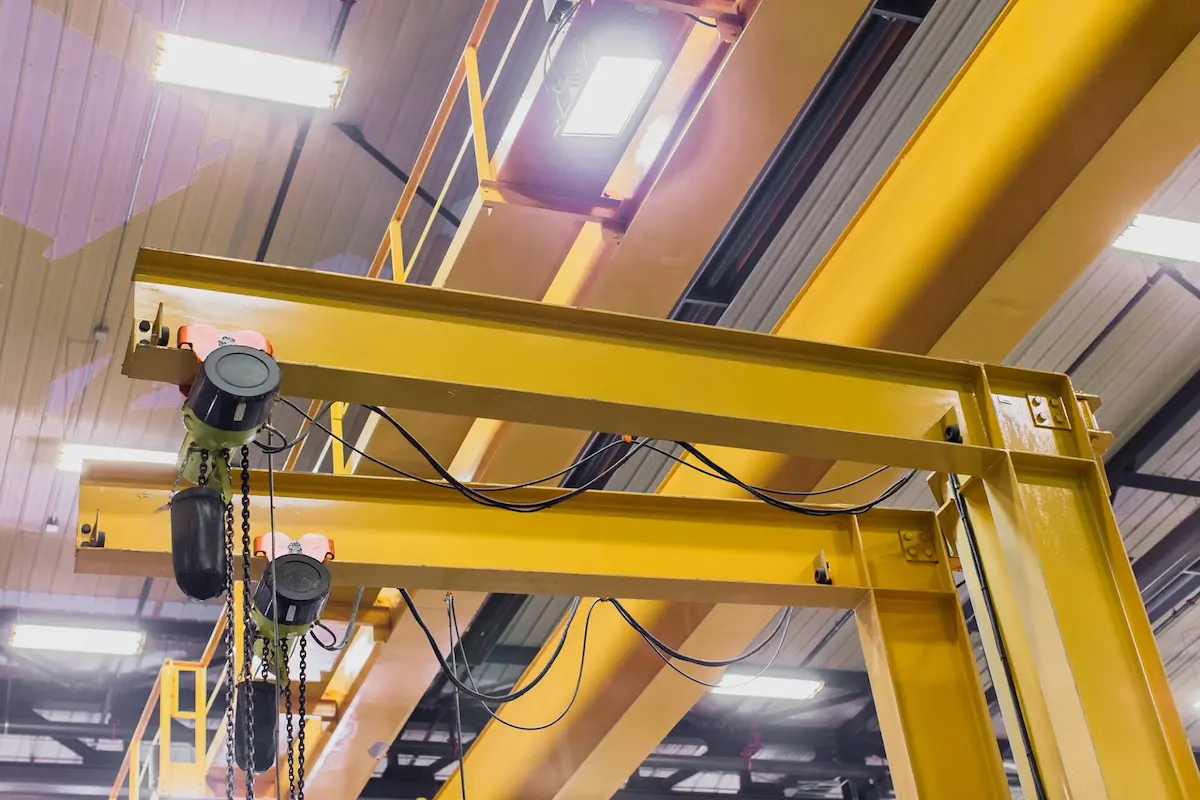

Large machining workshop

Large workshops usually have large-tonnage overhead cranes. Many think jib cranes are unnecessary with overhead cranes. This is a huge misunderstanding. Overhead cranes handle main artery tasks. Jib cranes act as capillaries.

• Layout idea:Zoned lifting with high and low coordination.
• Preferred scheme:Implement zoned layout for heavy and light equipment. Overhead cranes move heavy base materials to temporary zones. Jib cranes handle frequent machine loading, tool, and chuck changes. This avoids machines waiting idly for a single overhead crane.

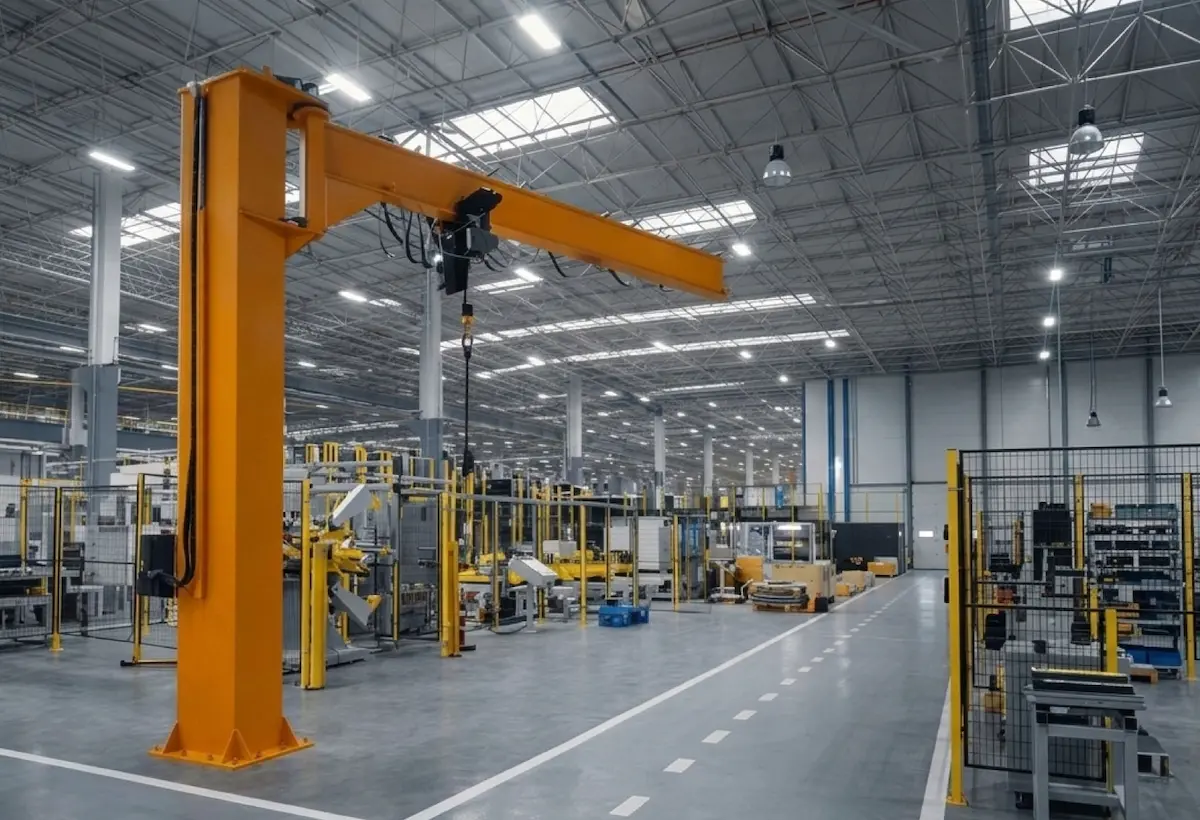

Common errors in jib crane layout

Many clients regret crane installation later. This is often due to drawing stage pitfalls. We must observe international standards during jib crane layout for safety.

1. Ignoring coverage range:You buy a crane but miscalculate chuck distances. The hook fails to reach targets. Workers must manually push workpieces.
2. Choosing overly short jibs:Short arms save costs but fail to reach spindles. Open doors block them. Forced use easily causes machine collisions.
3. Installing too far away:Installing far away wastes effective arm length. It also causes dangerous pendulum effects during workpiece lifting.
4. Ignoring effective hook height:Strictly calculate hoist dimensions per FEM 1.001 Layout drawings often ignore hoist and hook dimensions. Lifted workpieces hit machine shells.
5. Ignoring passage space:The jib crane layout leaves no operator retreat paths. EN ISO 13854:2019 requires a 500mm safety gap. This prevents body crushing. Ignoring this brings safety risks.
6. Lacking expansion foresight:The jib crane layout occupies all space. Future new machines will lack space and crane coverage. You must rebuild floors for new cranes.
7. Conflicting working ranges:Adjacent jibs overlap without limit protection. EN 14985:2012 requires anti-collision devices for overlapping ranges. Otherwise, serious mid-air collisions easily occur.

HSCRANE jib crane product advantages

Many workshop directors report HSCRANE cranes are very smooth. They move exactly where you want them. We provide I-beam, KBK enclosed track, and articulated jib structures. These handle harsh workshop clearances perfectly. Also, hard-core international standards support every parameter. This applies from non-standard customization to factory acceptance:

• Flexible rotation radius and deep customized design:We offer one-on-one customization based on your equipment layout. This includes 180° wall-mounted or 360° pillar types in islands. Initially, we strictly follow ISO 4301-1:2016 We accurately classify crane working groups based on lifting frequency. We reject overloaded small machines or excess performance.
• Extreme safety and structural stability:The biggest fear is the jib bowing when lifting heavy molds. Our metal design follows EN 14985:2012 Clause 5.4.1. This strictly limits full-load elastic deformation and deflection. Deflection is strictly controlled within L/250. The heavy-duty jib end doesn’t drop. The trolley slides without slipping. This fundamentally ensures operator safety.
• Perfect synergy with high-end electric hoists:Whether choosing chain or wire rope hoists, our combinations meet strict rules. Our lifting mechanisms and electrical systems follow FEM 1.001 Dual-speed micro-control allows millimeter-level smooth loading on machine chucks. This effectively prevents workpieces from hitting precision tools.

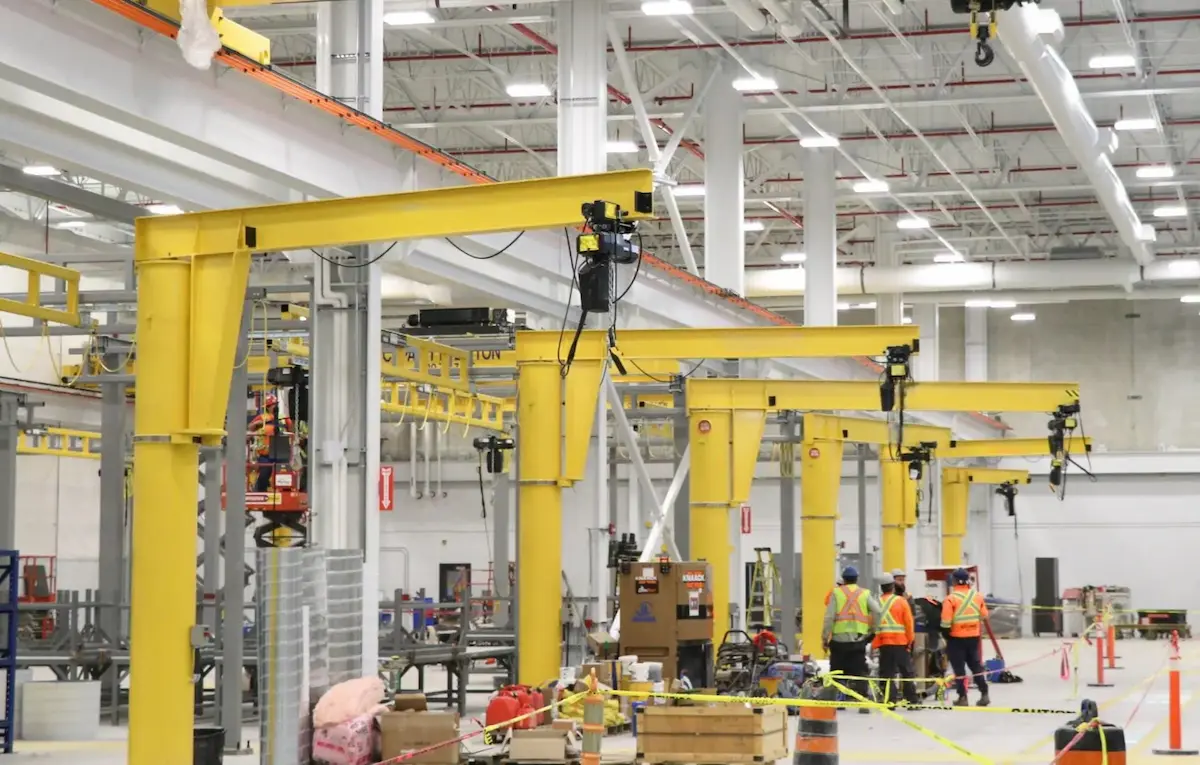

Classic case: ZF Group Mexico factory lifting layout plan

Project files:

• Client/Country:ZF Group / Queretaro factory, Mexico.
• Project type:New energy reducer shell CNC machining line.
• Purchase quantity:12 sets of 1-ton 360° pillar jib cranes.

Client pain points: A single shell with fixtures weighs 450kg. Loading and unloading reach 60 times per shift. Originally, 24 CNCs relied on two 5-ton overhead cranes. Machine waiting time averaged 12 minutes. This severely dragged down the production line’s OEE.

Jib crane layout analysis and design: The HSCRANE team excluded large single-machine layouts. We adopted a multi-station shared mode. We 3D scanned workshop interferences. We accurately placed 12 pillars at the geometric centers of adjacent CNCs. A 4.2-meter ultimate working radius was specially customized. It perfectly covers both machine spindles. It also just avoids forklift paths in the main channel.

Installation and effect: We used a modular flange baseplate design. We completed installation during a 48-hour weekend shutdown. This caused zero delay in production scheduling. After delivery, machine waiting time dropped to zero minutes. The entire line’s daily capacity surged by 28%. For over a year, manual handling injury rates remain zero.

Conclusion

Jib crane layout planning is never a simple fill-in-the-blank question. It is a systematic project regarding the workshop rhythm. It includes calculating lifting heights and planning obstacle avoidance routes. It also means strictly following international safety regulations. Every detail directly affects equipment OEE and frontline operator safety. Never wait until floors are poured and equipment enters. You might find jibs cannot turn or hooks miss spindles. Doing professional planning upfront is the best solution. This reduces costs and increases efficiency for machining plants.

Ready to optimize your workshop lifting efficiency?
Are you planning a new flexible manufacturing cell? Or are you upgrading a crowded old factory? Professional jib crane layout planning is always the first step.
[Click here to contact the HSCRANE engineering team]. Upload your workshop floor plan via CAD or PDF. We will provide free one-on-one site evaluations and 3D plans. This is based on ISO and FEM standards.

Further reading: Layout done, how to control the budget?
Many workshop supervisors finish the layout planning first. Then they find the calculated equipment purchase budget is exceeded. Actually, avoiding pitfalls and saving money starts at selection. How can you meet safety and working condition needs? How can you cut off unnecessary redundant configurations?
[Click to view: “How to Reduce Jib Crane Purchasing Costs? Wall Mounted vs Pillar Jib Crane Comparison Guide“]

FAQ

Q: Can we install pillar jib cranes directly on concrete?
A: It depends on your workshop floor’s concrete grade and thickness. Light cranes under 1 ton and 4 meters work well. Your C30 floor must be 150mm to 200mm thick. Then you can use large chemical anchors for direct fixing. For larger weights, cracked floors, or insufficient thickness, safety is key. We strongly suggest pouring an independent concrete foundation.

Q: Can we install jib cranes in very low workshops?
A: Absolutely. HSCRANE provides special “Low Headroom” jib crane designs for low workshops. We hide hoist tracks beside or inside the I-beam. This compresses the vertical space occupied by the equipment. This saves you precious and effective lifting height.

Q: Can the crane move if our machines relocate later?
A: Yes. Our recommended pillar cranes use a modular design. They connect via flange baseplates and high-strength bolts. Adjusting the jib crane layout later is easy. Just remove the anchor bolts to relocate the whole crane. For new foundation schemes, just pour foundations at new locations. The equipment body can be completely reused.

Q: Should I choose manual or electric rotation for cranes?
A: The core criteria here are lifting weight and frequency. If lifting under 1 ton and 5 meters, use manual. Workers can easily push and pull parts, highly cost-effective. If lifting over 2 tons, or needing high-frequency precision loading. To protect workers’ lumbar health and ensure stability. We highly recommend standard electric rotation mechanisms in these cases.

This document is for reference only. Specific operations must strictly comply with local laws and regulations and equipment manuals.
