Product Description

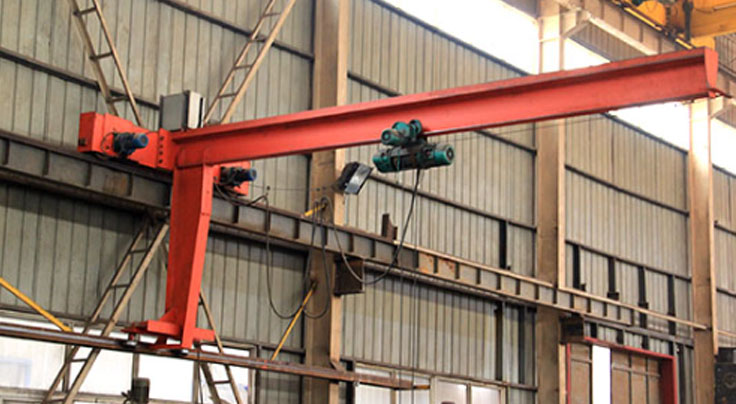

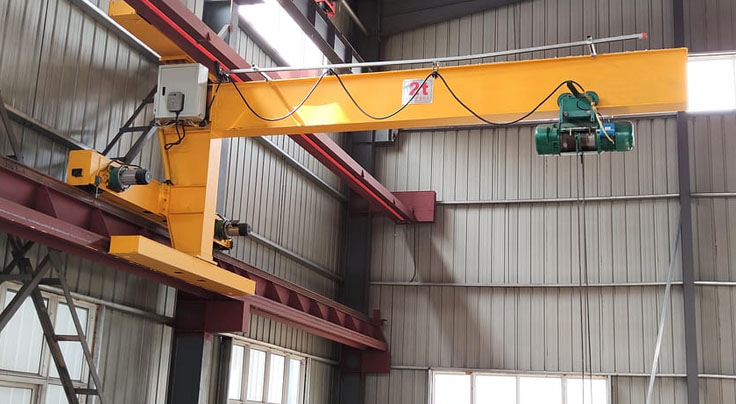

Wall traveling jib crane (abbreviated as wall travel crane, also known as wall travel jib crane, wall travel jib crane, wall jib crane installed). It is a new type of material lifting equipment developed on the basis of wall column jib crane. The running track of the machine is mounted on the cement pillar of the factory and can be moved longitudinally along the track. At the same time, the electric hoist can complete the horizontal movement along the cantilever and the lifting in the vertical direction.

 Workshop wall jib cranes with electric hoist are wall jib cranes with 360 ° swivel beam, European style and customized design. The Workshop Wall Jib Crane with Electric Hoist is a lightweight lifting device with a lifting capacity of 250 kg - 5000 kg, consisting of a main beam, an end frame, a drive mechanism, a chain hoist or an electric hoist.

Technical Parameters

project

data

capacity

0.25-5t

Lift height

2-10 US

Rotation angle

360°

Lift speed

1.25-10 m/min

Travel speed Lifting mechanism Rotation speed

14-20 m/min

power supply

220v/380v 50hz 3 phase or customized

other

Depending on your specific application, specific models and designs will be available

Characteristics

  • small and medium-sized lifting equipment

    Safe, reliable, efficient, energy-saving, time-saving, labor-saving, flexible

    Electric or manual rotation

    Wall Travelling Jib Crane
  • In the case of short-distance, concentrated lifting

    It is simpler and cheaper than an overhead crane or gantry crane with the same capacity

    Wall Travelling Jib Crane

Advantages

  • 01 Installation with high-strength bolt connection
  • 02 Easy to operate, safe and flexible to steer
  • 03 Low noise, spacious cabin and beautiful.
  • 04 High quality and high efficiency, competitive price.
  • 05 The overall structure is reasonable and simple, light in weight, and in line with national standards.
  • 05 The inexpensive disposal system does not require modification of the surrounding building structure.

Application

  • It is widely used in machinery, metallurgy, automobile, shipbuilding, glass, paper making, chemical industry and so on. It can be customized according to your different requirements.
